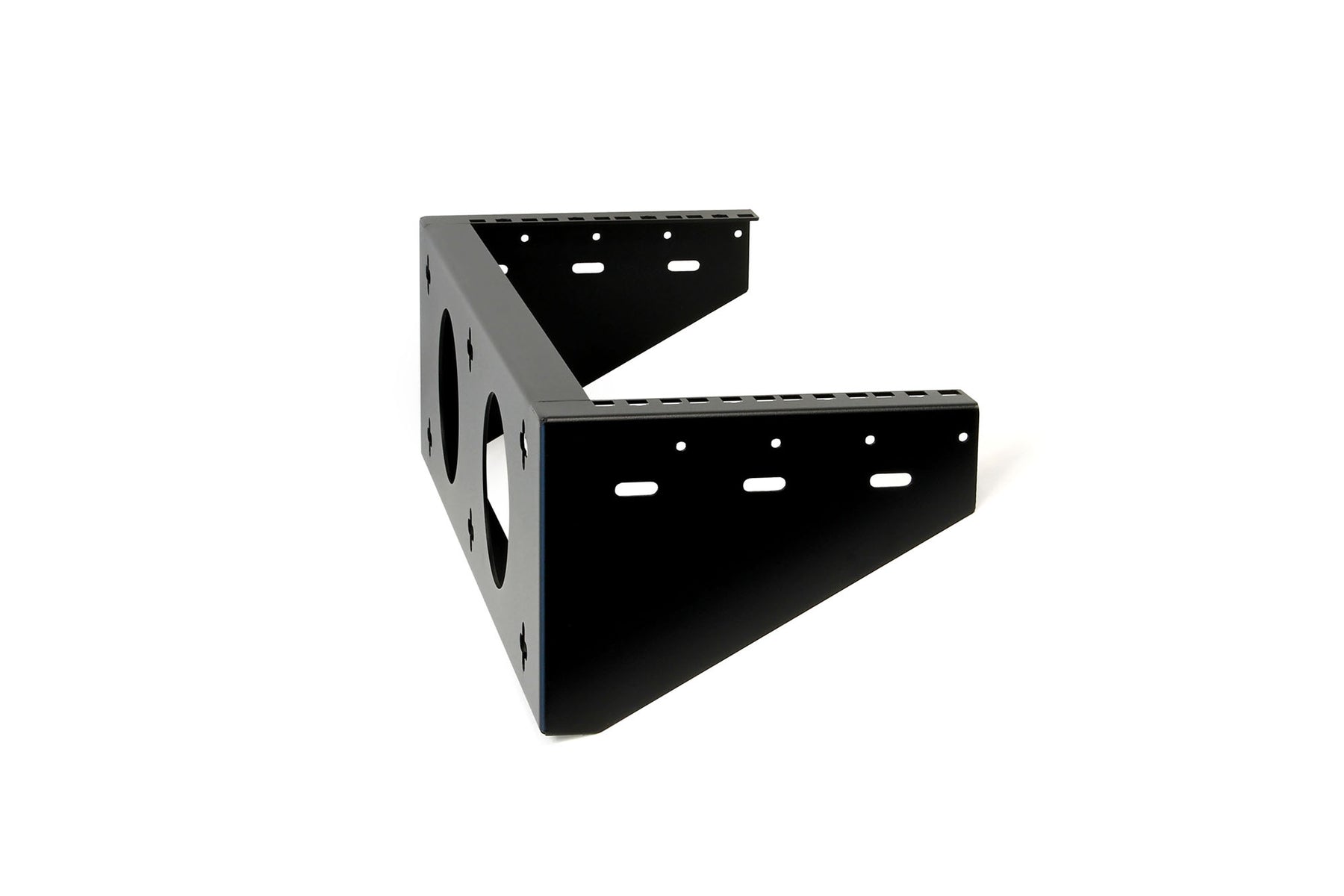

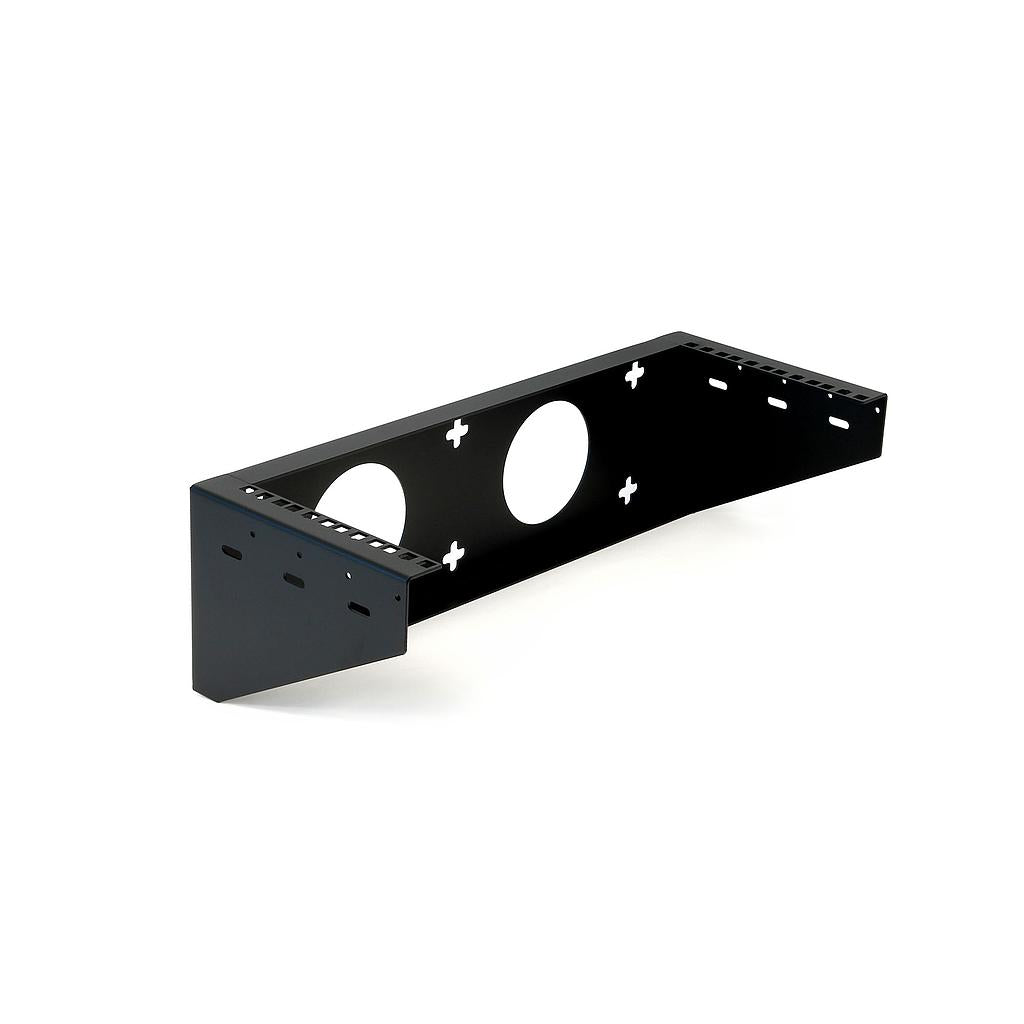

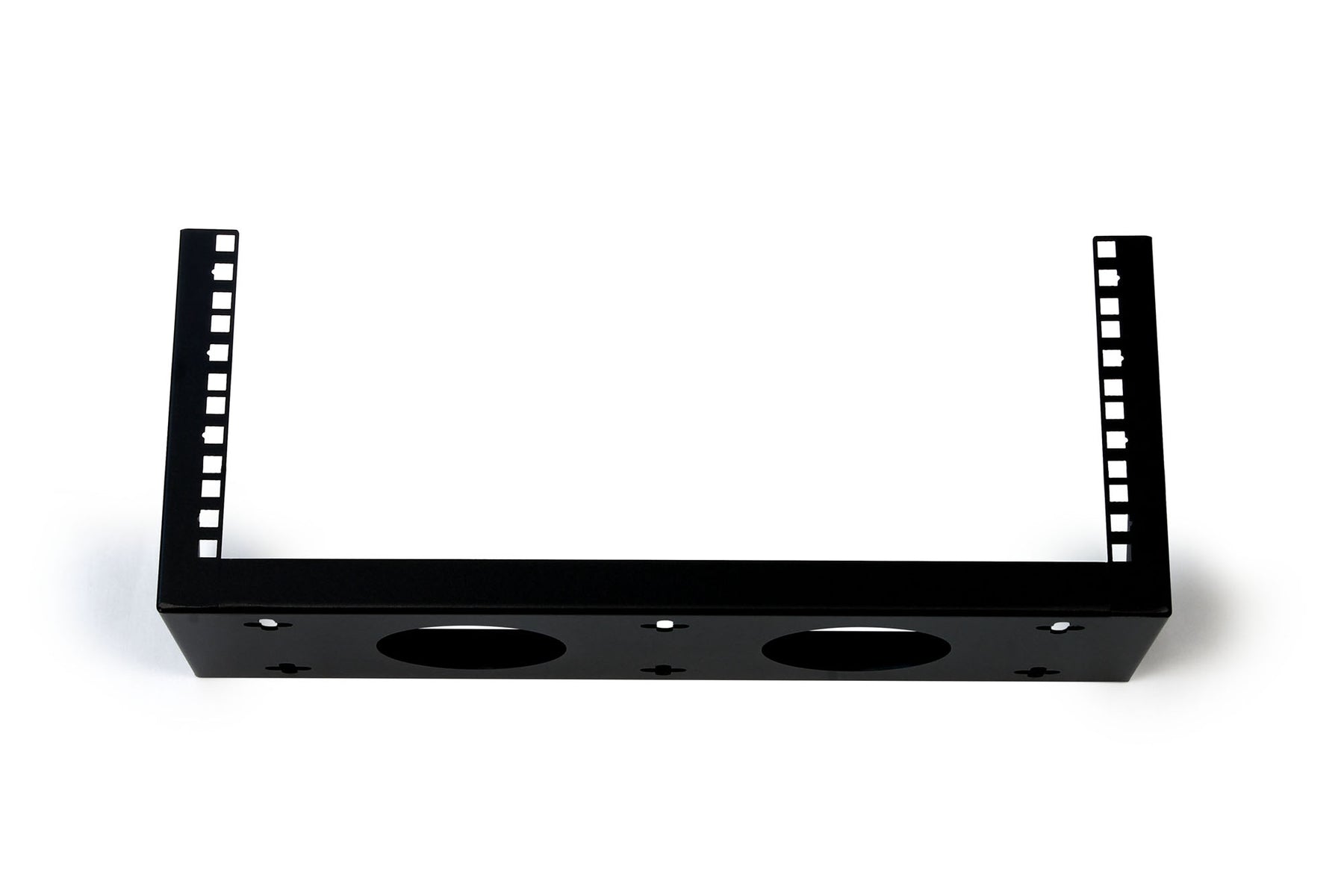

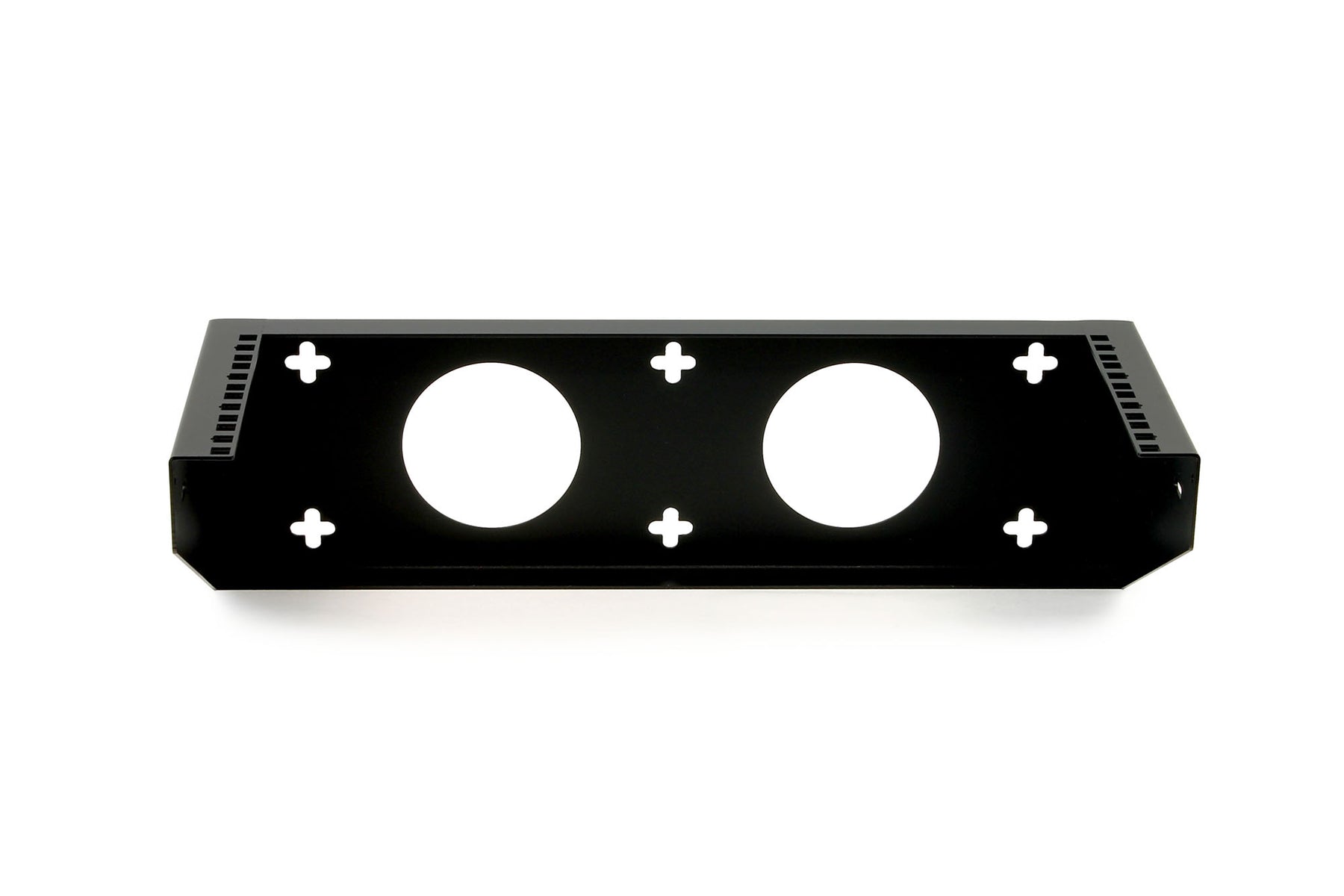

Vertical Wall Mounted Bracket
This 19" vertical wall mount bracket is an economical choice for small equipment with easier installation.
Features:
-
Fully assembled, quick installation
-
Welded frame, sturdy and reliable
Specifications:
-
Material: SPCC (quality cold rolled steel)
-
Color: Black
| Capacity (U) | Dimensions WxDxH (mm) | Dimensions WxDxH (in) |
Static Loading Capacity (kg) |
Static Loading Capacity (lbs) |
| 4 | 514 x 206 x 152 | 20.24 x 8.10 x 6.00 | 30 | 66 |

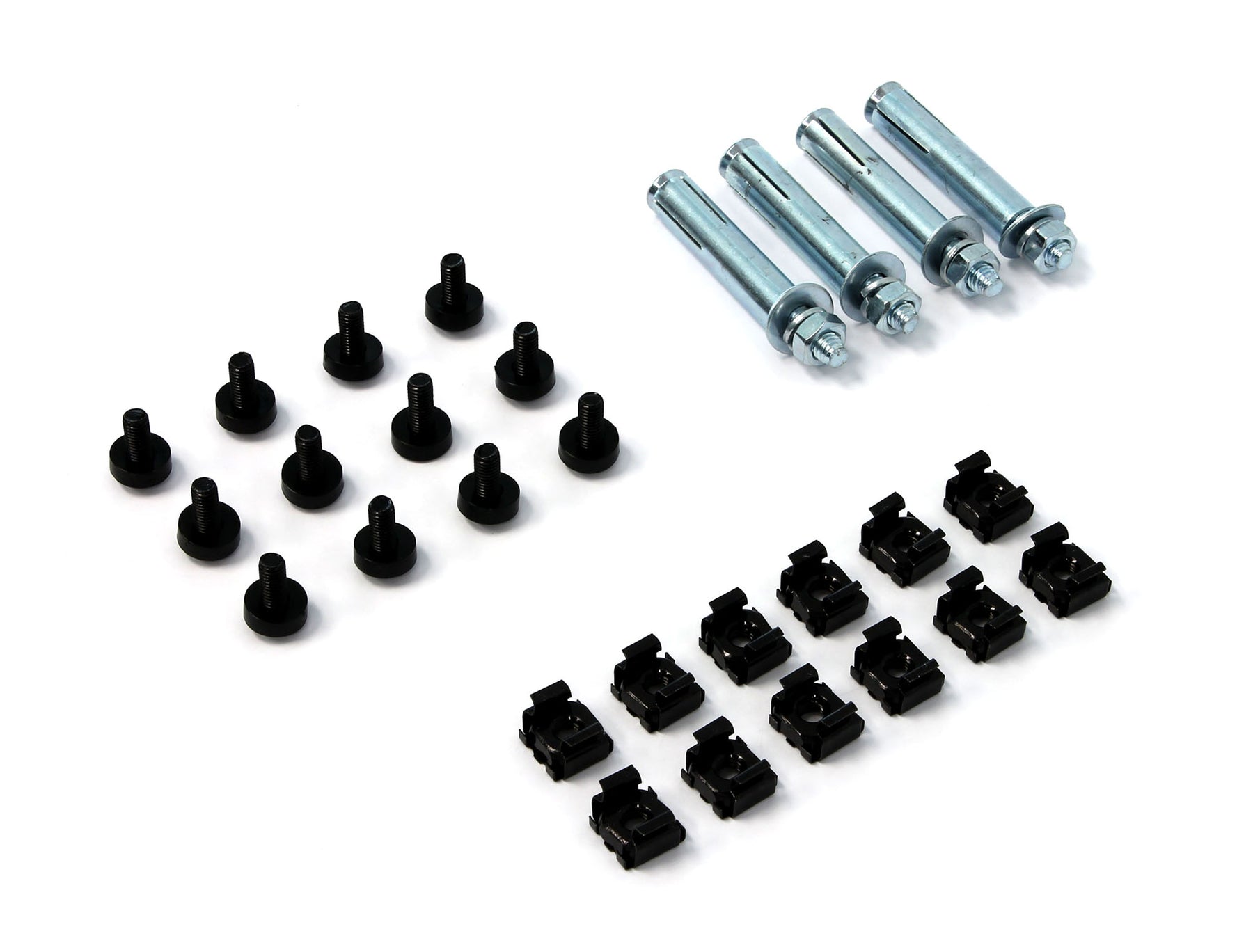

Package Contents:
-
12 x 10-32 Screws
-
12 x 10-32 Cage Nuts
-
4 x Concrete Anchor Bolts
-
12 x Washers
Shipping Information:
| Dimensions WxDxH (mm) |
Dimensions WxDxH (in) |
Weight (kg) | Weight (lbs) | Volume (CBM) |
| 535 x 230 x 170 | 21.06 x 9.06 x 6.69 | 2.72 | 6.00 | 0.021 |
